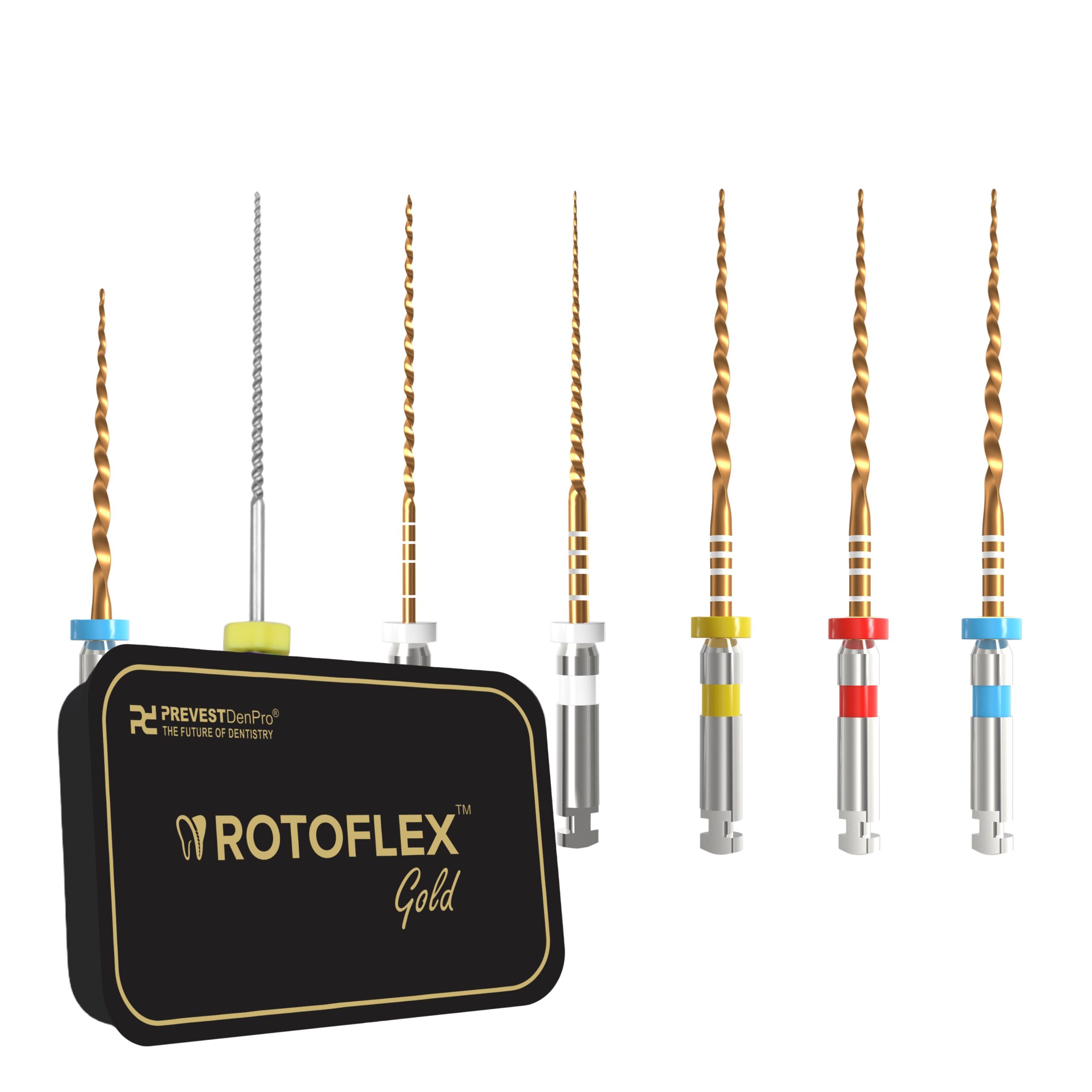

Rotoflex Gold NiTi Rotary Files

Product Description:

Rotoflex Gold files are mechanized NiTi endodontic instruments used to prepare root canals.
  • Made of high quality NiTi alloy with flexible performance after special heat treatment process.
  • Improved the fracture resistance.
  • Forward cutting angle with excellent cutting efficiency, easy to discharge debris.
  • The round tip can prevent steps or piercing through by the side.
  • Adaptive thread makes the files efficient ,flexible and high strength.

Rotoflex Gold Operation process:


šŸ”¹Step 1:
  • Probe the root canal with a #10 K-file to ensure a glide path exists.

  • Use a #16 PA-FILE, advancing slowly with a gentle pecking motion, avoiding excessive pressure.

  • Stop and withdraw the file upon feeling resistance.

  • Then, use a #10/02 hand K-file to remove debris.

  • Flush and lubricate the canal thoroughly.

šŸ”¹ Step 2:
  • Enlarge the coronal portion of the root canal with the R# file, advancing slowly with a pecking motion.

  • Exit upon resistance.

  • Use a #15/02 hand file to check if the canal is patent.

  • Flush and lubricate.

  • After using the open file, the root canal orifice should be noticeably wider.

šŸ”¹ Step 3:
  • Insert a #20/04 root canal file and prepare the apical area to the working length with a gentle pecking motion.

  • Withdraw upon resistance.

  • Use a #15/02 hand file to confirm canal patency.

  • Flush and lubricate.

šŸ”¹ Step 4:
  • Insert a #25/04 root canal file and prepare the apical area to the working length, moving forward gently.

  • Withdraw upon resistance.

  • Check patency with a #15/02 hand file.

  • Flush and lubricate.

  • Optional: If a larger canal reaches working length here, skip directly to Step 6.

šŸ”¹ Step 5:
  • Insert a #30/04 root canal file to enlarge the apical portion to the working length.

  • Proceed slowly with a pecking motion, exiting upon resistance.

  • Confirm patency with a #15/02 hand file.

  • Flush and lubricate.

šŸ”¹ Step 6:
  • Insert a #25/04 root canal file to shape the middle third of the root canal, advancing to the working length.

  • Use a gentle pecking motion, exit upon resistance.

  • Confirm patency with a #15/02 hand file.

  • Flush and lubricate thoroughly.

Summarize:

  • RecommendedĀ procedure
  • For narrow root canals: Step 1, 2, 3
  • ForĀ mediumĀ sizedĀ rootĀ canals:Ā StepĀ 1,2,3,4
  • For large sized root canals: Step 1,2,3,6,5
  • RecommendedĀ rotationĀ speed:Ā 300rpm
  • Torque:Ā 2.00-2.50N.cm
